首頁 > 供應產品 > 霍克充電樁LPC120-24/24V120A全自動智能充電站
霍克充電樁LPC120-24/24V120A全自動智能充電站
單價 面議對比
詢價 暫無
瀏覽 5537
發貨 北京付款后3天內
品牌 霍克/hawker
過期 長期有效
更新 2024-03-12 13:55

詳細信息

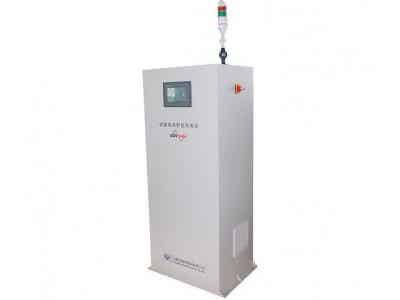

霍克充電樁LPC120-24/24V120A全自動智能充電站

Product Features

This product is designed for automatic guided / pure electric passenger / electric forklift applications. Products from the basic power module N + 1 parallel combination, the maximum to meet the 24V120A power applications. The machine adopts the controller specially developed for AGV car application demand, realize the function of logic control, system protection, parameter setting, charger management, upper communication and so on, and adopts 7-inch full color touch screen to realize human-computer interaction.

The system has the following features:

●DC output 24V60A and 48V50A modular power supply, support current expansion upgrade.

●hot-swap mode, N + 1 redundant structure protection

●ultra-high power density, compact size

●Standard efficiency up to 92%

●variety use mode (independent charge, interactive charge, maintenance charge)

●With industrial communication bus (CAN / MODBUS / PROFIBUS DP)

●High protection safety rating (IP54), designed for industrial applications

This product is designed for automatic guided vehicles / electric forklifts and other applications. Products from the basic power module N + 1 parallel combination, the maximum to meet the 24V240A / 48V200A power applications. The machine adopts the controller specially designed for the AGV trolley application for the automatic production line. It realizes the functions of logic control, system protection, parameter setting, charger management, upper communication and so on, and adopts 7-inch full color touch screen to realize human-computer interaction.

The system has the following features:

●Ultra-high power, 240A @ 24V / 200A @ 48V

●hot-swap mode, N + 1 redundant structure protection

●ultra-high power density, compact size

●support current expansion upgrade

●Standard efficiency up to 92%

●Variety use mode (fast charge, interactive charge, balanced charge, maintenance charge)

●provide IO port for system interlock protection

●With industrial communication bus (CAN / MODBUS / PROFIBUS DP)

●High protection safety rating (IP54), designed for industrial applications



Product specifications

Voltage level

24Vsystem

48Vsystem

model

LPC120-24

LPC180-24

LPC240-24

LPC100-48

LPC150-48

LPC200-48

power

3600W

5400W

7200W

6000W

9000W

12000W

recharging current

5~120A

5~180A

5~240A

5~100A

5~150A

5~200A

Input voltage

220VAC±10%,50/60HzOptional 380VAC±10%

Power factor

≥0.99@220Vac/50A, ≥0.98@220Vac/25ASingle module

Dynamic adjustment rate

±5.0% for 10-90% or 90-10% Load change, Adjust the time < 200us

Load Regulation

±0.5% from 10% to 100% load

Charging voltage

1630VDC

4358VDC

Steady flow accuracy

±0.5%

Noise voltage

< 200 mV Peak peak, 30 MHz bandwidth, < 2 mV rms Telephone weight

Regulation accuracy

±0.5%

Time accuracy

±10S/24h

Charging parameter settings

Voltage

0.01V

Current

0.1A

time

1S

Dimensions

According to power

weight

According to power

Operating temperature

0~45

Storage temperatur

-10~40

Working humidity

Relative humidity 10%~80%,No condensation

protection

Overcurrent, overvoltage, overtemperature, reverse, missing, short circuit, cut off

communication

CAN/MODBUS/ PROFIBUS DP Optional

Interaction DIO

Dry contact DIO, Battery contact informs, standby, charging, charging is complete, faulty

safety standard

IEC 60950-1

Electromagnetic compatibility standards

EN 61000-6

environment

ETSI EN 300 019-2   RoHS compliant

Insulation and pressure

3.0 KVAC –Input pair output 1.5 KVAC –Input to ground 0.5 KVDC –Output to ground

Average trouble-free working hours

5 Million hours

noise

50DB


LPC120-24 charging station dimensions:


LPC120-24 above specifications charging station Dimensions:


The charging station uses floor-mounted foot installation mode.
